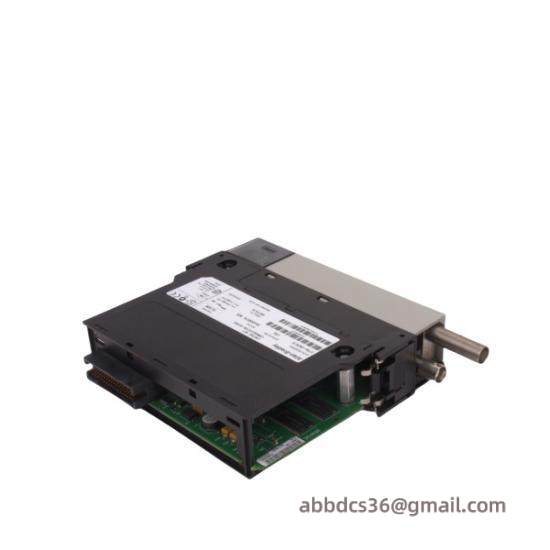

Allen-Bradley 1756-CN2R/B ControlLogix ControlNet Redundant Bridge Module

Model Type:Redundant Bridge Module

Manufacturer:Allen-Bradley

Model Number:1756-CN2R/B

Communication Interface:ControlNet

Number of Channels:2

Current Rating:Drawn: 970 MA at 5.1 VDC, 1.7 MA at 24 VDC

Isolation:30 V (Continuous), Basic Insulation Type

Mounting:Chassis

Enclosure Type:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHZ sine-wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 900 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 1890 MHz, 3 V/M with 1 KHZ sine-wave 80% AM from 2000 – 2700 MHz

Temperature Rating:32 – 140 DEG F

Operating Voltage:Not specified

    The AB 1756-CN2R/B ControlLogix ControlNet Redundant Bridge Module is specifically designed for industrial automation systems requiring high-speed, reliable data communication. It ensures seamless integration between ControlNet networks, providing robust data transmission and enhancing system reliability through redundant pathways.

    Equipped with advanced isolation technology, this module safeguards against electrical interference, ensuring uninterrupted operation even in harsh industrial environments. Its open-type enclosure allows for easy installation and maintenance, further optimizing system efficiency.

    With its comprehensive suite of communication protocols, the 1756-CN2R/B module supports a wide range of devices and systems, facilitating interoperability across diverse industrial settings. The modular design allows for scalability, accommodating growing automation needs without the need for system reconfiguration.

    Featuring a rugged construction that withstands extreme temperatures ranging from 32 to 140 degrees Fahrenheit, this module ensures reliable performance in a variety of operating conditions. The inclusion of robust RFI suppression mechanisms protects against electromagnetic interference, safeguarding against data corruption and downtime.

    For those seeking to enhance the resilience and performance of their industrial control systems, the AB 1756-CN2R/B ControlLogix ControlNet Redundant Bridge Module offers an unmatched combination of reliability, efficiency, and compatibility. It is an essential component for achieving optimal automation outcomes in modern manufacturing and industrial applications.
